1.44 Inch 128x128 LCD Display MCU 8bits Interface Square TFT LCD Display
| Product: |
Square 1.44 Inch TFT LCD Display |
Resolution: |
128x128 Pixels |
| Viewing Direction: |
6 O'clock |
Touch Screen: |
Without Resistive Touch Screen (Optional) |
| Interface: |
MCU 8bits |
Pin Number: |
18 Pins (can Be Customized) |
| Connection: |
Soldering (can Be Customized) |
Driver IC: |
ILI9163C |
| Outline Dimension: |
30.9*36.51*2.3mm |
Surface Luminance: |
150 Cd/m2 (can Be Customized) |
| Operating Temp.: |
-20℃ To +70℃ |
Compliance: |
REACH & RoHS Compliant |

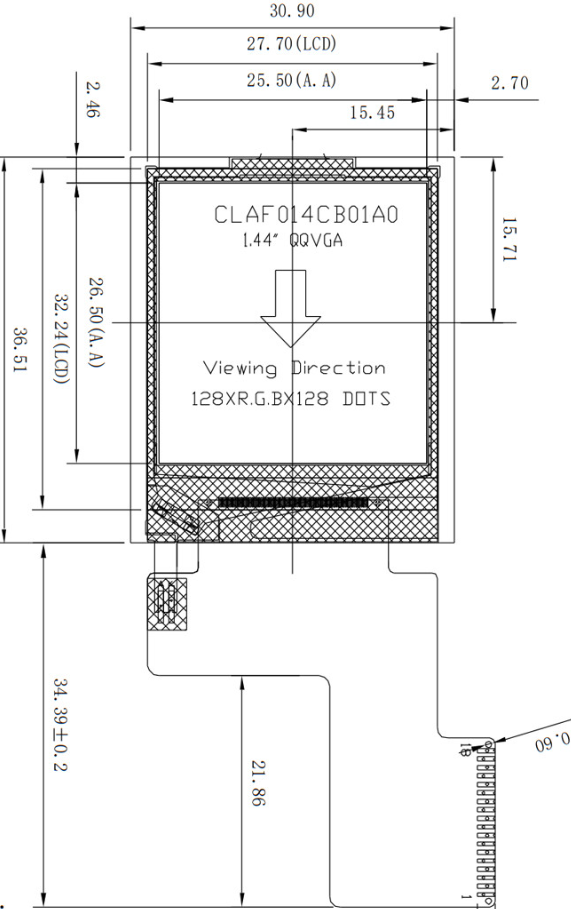

Product Drawing
Product Core Introduction
This compact square color display module utilizes TFT (thin film transistor) active matrix technology with a 128*128 pixel 1:1 square resolution, making it ideal for displaying icons, text, small graphics, and simple animations. The display features the ST7735S driver chip with a standard 8-bit MCU parallel interface (8080 interface), with many models also supporting SPI serial mode for both high-speed screen refreshing and simplified IO requirements.
The display supports 65K/262K full color (16/18-bit color depth) with transmissive display combined with white LED backlight and adjustable brightness (typically 300-350 cd/m²), ensuring clear visibility in low-light outdoor environments. Operating at 3.3V with low-power design, it's suitable for battery-powered devices. The temperature range of -20℃ to +70℃ (storage temperature -30℃ to +80℃) makes it adaptable for industrial and outdoor applications.
Structurally, it employs FPC flexible wiring (common 20-pin ZIF interface) with a slim module thickness of 2.3-2.5 mm and an effective display area of approximately 25.5*26.5 mm. The compact design facilitates integration in narrow spaces, with some models offering capacitive touch full-coating versions.
Core Application Scenarios
- Smart Wearables and Portable Health Devices: Small smart watches, fitness trackers, fingertip oximeters, portable glucometers - square screens display heart rate, steps, and numerical reports neatly with touch interface for quick navigation
- Industrial Instruments and Embedded Terminals: Small PLC panels, sensor data indicators, handheld detection instruments - 8-bit MCU interfaces directly compatible with mainstream industrial control chips including 51 single-chip microcontrollers and STM32
- Smart Home and IoT Devices: Status screens of smart locks, visual panels of Bluetooth speakers, small environmental monitors (temperature/humidity/PM2.5) - low power consumption and small size perfectly match product design requirements
- Maker and Educational Electronics: Arduino, Raspberry Pi Pico, ESP32 development kits - paired with mature TFT_eSPI driver libraries for quick graphic UI, data visualization, and game interface development
- Car-mounted Small Screens: Tire pressure monitors' secondary screens, quick settings screens of dashcams - wide temperature range ensures stable operation in vehicle high/low temperature environments
