| Screen Size | 5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Pin | 30 pin |
| Display area | 62.10(H)x110.40(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |
| Outline Dimension | 78.56x135.65x2.95mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | MIPI |
| Back-light | LED Side-light type |
| LCM IC | ST7703 |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |

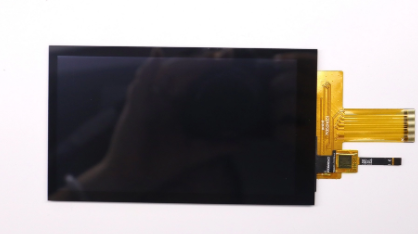

5-inch LCD vertical screen with 720*1280 resolution, MIPI interface capacitive touch panel. This is a type of display screen commonly used in various electronic devices. Here is a detailed introduction:
Basic Parameters
Size: The diagonal size is 5 inches. The module's external dimensions vary depending on the manufacturer. For example, the module of the HJ5080-05 model has an external size of 65.7 (W) * 120.2 (H) * 1.8 (T) mm, and the effective display area is generally 62.1 (W) * 110.4 (H) mm.
Resolution: The resolution is 720*1280 pixels, with a high pixel density, providing a relatively clear image and text display effect.
Interface Type: It adopts the MIPI interface, usually 4-lane MIPI DSI, featuring low power consumption and high-speed data transmission, capable of meeting the transmission requirements of high-resolution image data for the display screen.
Display Technology
Panel Type: Generally uses IPS technology, with full-view characteristics, the viewing angle can reach 85/85/85/85 or 80/80/80/80, and the image color and contrast change little when viewed from different angles.
Display Mode: Usually transmissive mode, normal black mode, that is, the screen shows black when there is no backlight, and shows images when there is backlight.
Touch Function
Touch Technology: Uses capacitive touch panels. Some products support 10-point touch. Touch control chips such as GT911, GT928, etc.
Structure and Characteristics: Some products adopt OCA optical bonding technology, making the touch screen better fit the display screen, with better shock resistance and vibration resistance performance, and improving brightness, transmittance and contrast.
Other Characteristics
Brightness: The brightness of different products varies. For example, the SF-TC500I-8725B-CT model has a brightness of 300cd/m², and the RF3500D-AYW-MNG1 model has a brightness of 250cd/m².
Operating Temperature: The operating temperature range is generally -20℃ to 70℃, and the storage temperature range is -30℃ to 80℃, capable of adapting to the use in most conventional environments.
Driver Chip: Usually uses ILI9881C and other driver chips, integrating controller and driver functions, ensuring the stable operation of the display screen and good display effect.
Application Fields: Due to its moderate size, high resolution and touch function, it is widely used in industrial control, medical equipment, smart home, handheld devices, security monitoring and other fields.
